Overview
Terrain Surveys was commissioned to undertake a coordinated programme of topographical, utility and CCTV drainage surveys at the Theatre Royal Drury Lane in central London.
The Theatre Royal is one of London’s most historic and recognisable theatres. The current building dates from 1811–12 and is Grade I listed, reflecting its considerable architectural and historic importance. Located in the heart of the West End, the theatre presents the type of complex, sensitive environment where accurate existing-condition data and careful planning are essential when refurbishment works are being considered.
The surveys were required to support a planned refurbishment and reconfiguration of the building aimed at improving its functionality. With potential drainage alterations and diversions forming part of the proposals, the client required a detailed understanding of both the above-ground site conditions and the existing underground infrastructure before design work could progress.
Survey
Terrain Surveys carefully coordinated all three survey disciplines so that the topographical, utility and CCTV drainage investigations could be completed consecutively within a single three-day programme. This approach minimised disruption at the theatre while allowing the client to obtain a comprehensive and consistent set of survey information from one provider.

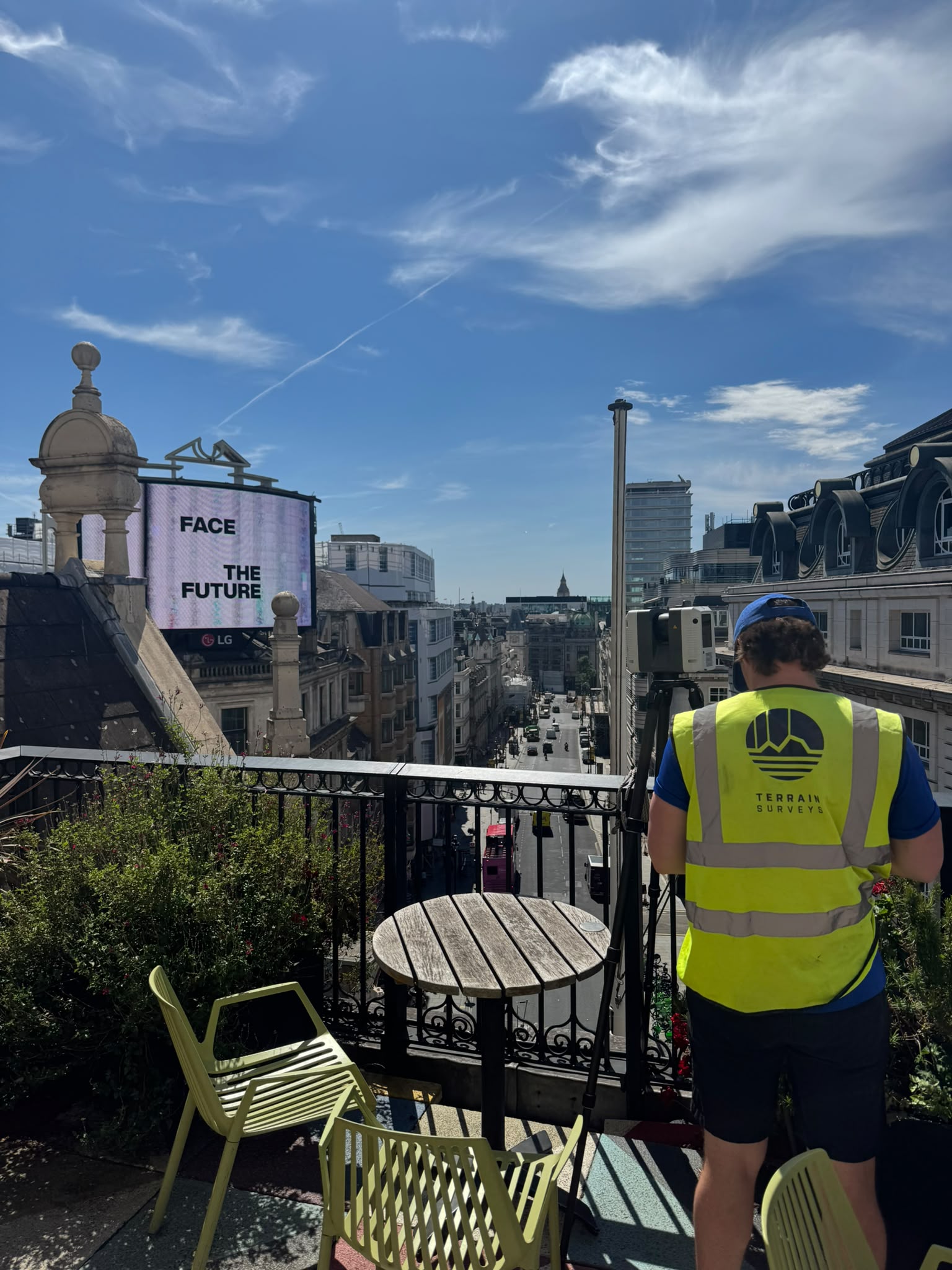

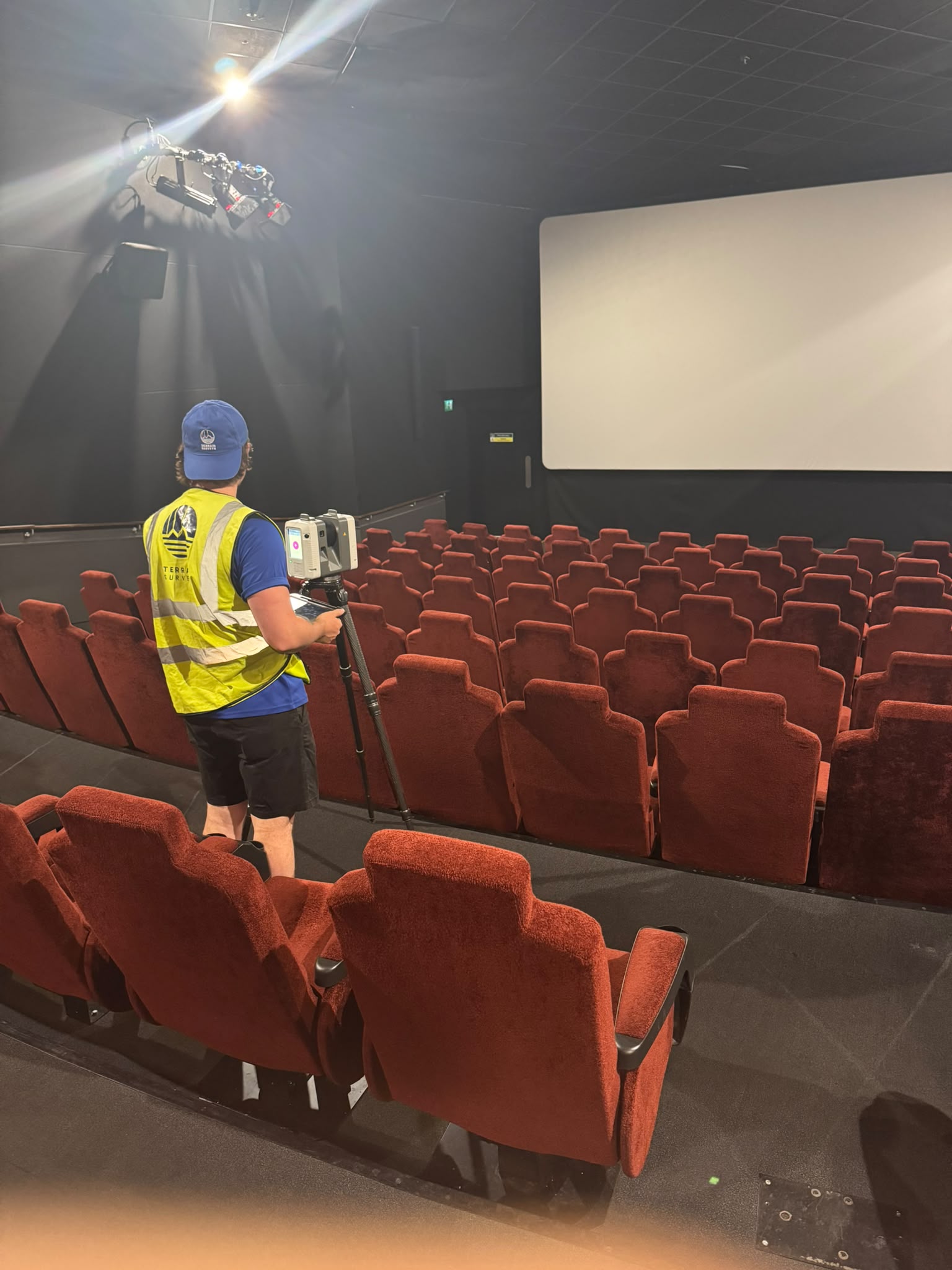

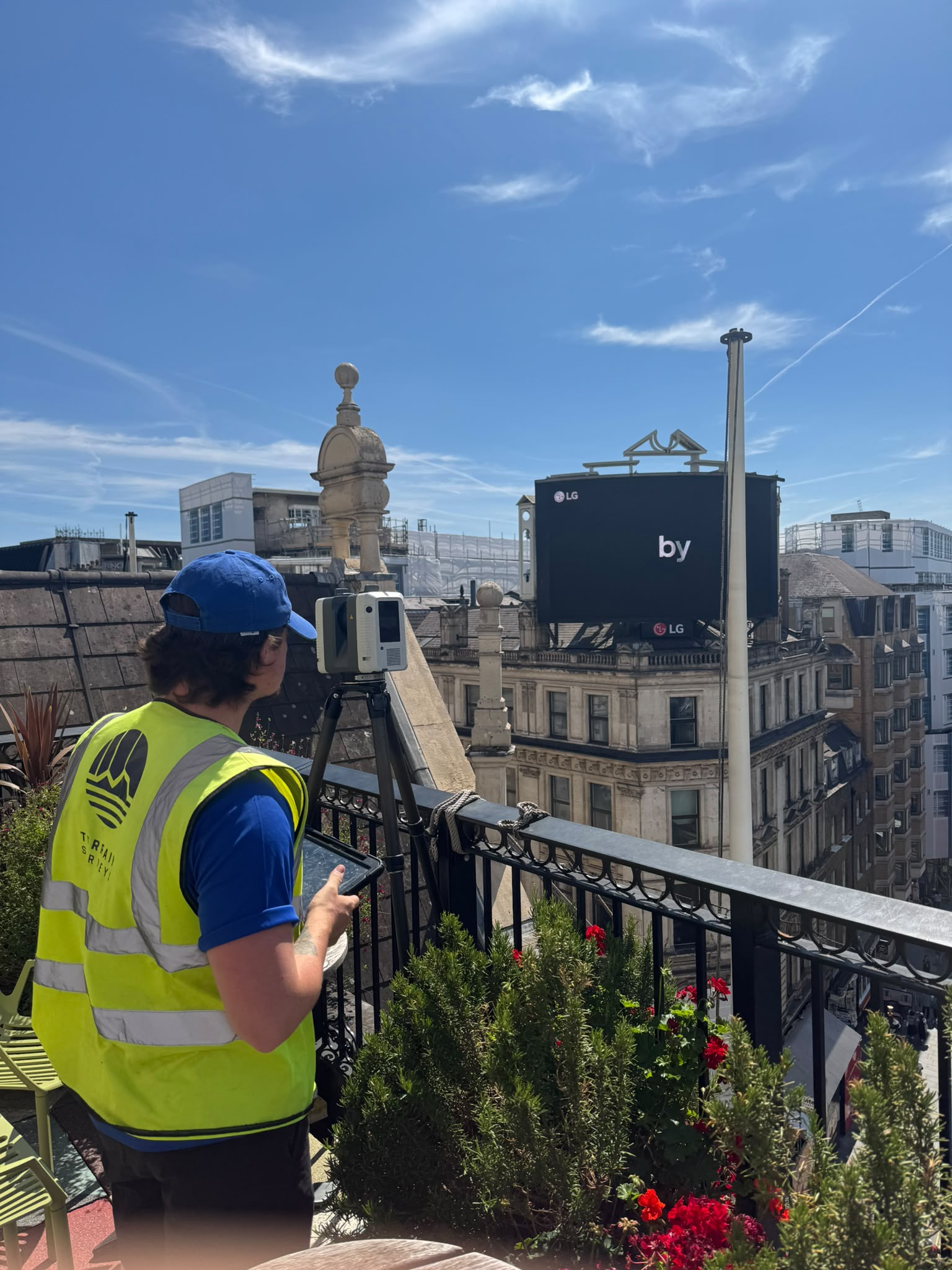

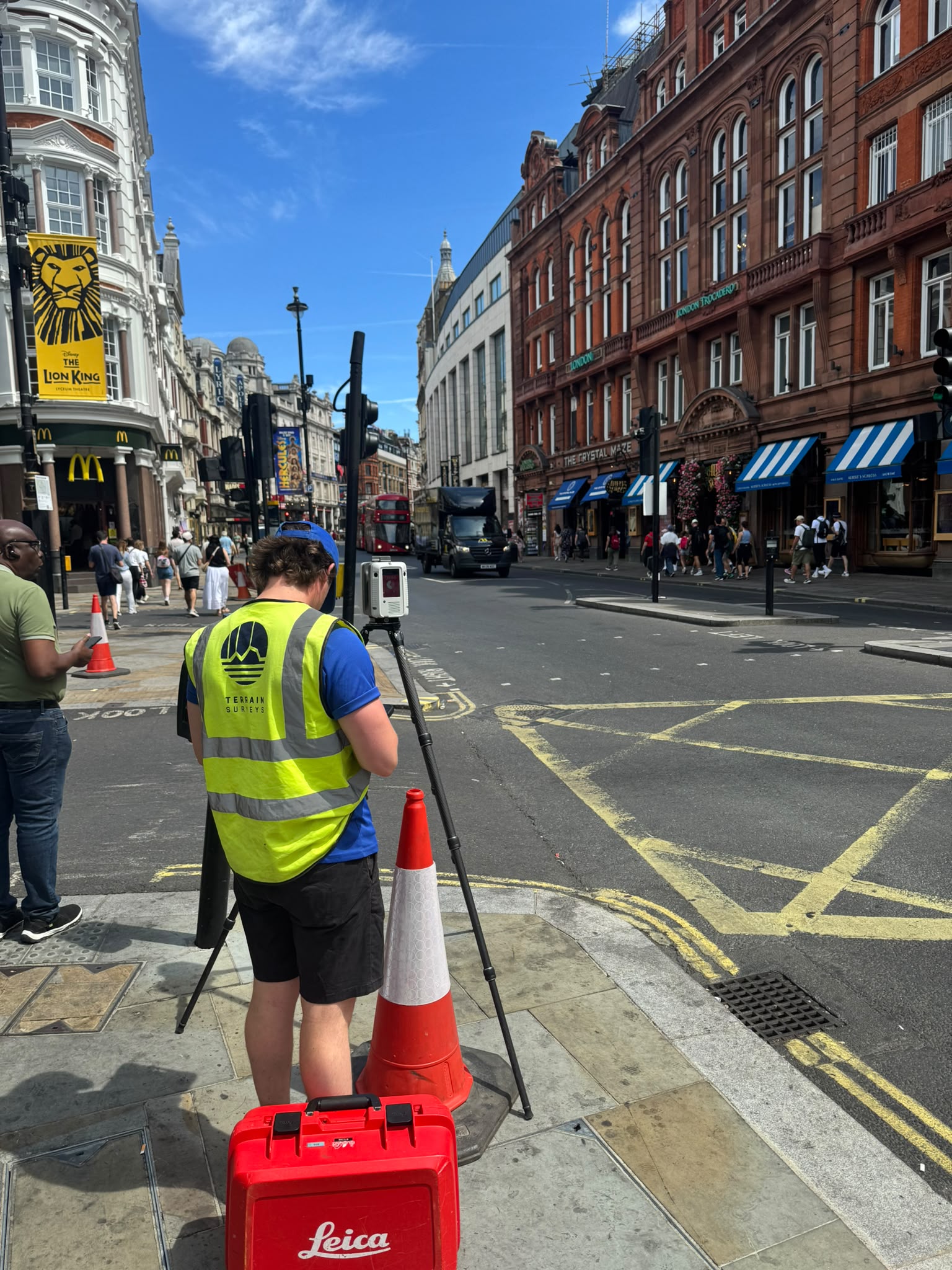

The topographical survey captured levels, site features and external areas required by the design team, while the utility survey established the location and alignment of detectable buried services around the property.
A full CCTV drainage survey was also undertaken to investigate the foul and surface water networks serving the building. Particular attention was given to confirming drainage routes, connectivity and existing condition, as this information would be critical when considering any future alterations or diversions to the network.
By coordinating the specialist teams and survey activities closely, Terrain Surveys was able to collect the required information efficiently while maintaining the demanding programme set by the client.
Results
The client received a coordinated package of survey information comprising detailed topographical and utility drawings alongside a comprehensive CCTV drainage report documenting asset information, connectivity and condition across the drainage network.
Bringing the three survey disciplines together provided the design team with a much clearer understanding of the existing site and its below-ground infrastructure, creating a reliable foundation for the proposed refurbishment and reconfiguration works.
Terrain Surveys successfully completed the project within the agreed budget and programme, demonstrating the advantages of a multi-disciplinary approach on complex refurbishment projects. By providing several specialist survey services through a single coordinated programme, we were able to reduce disruption, simplify project management and give the client the accurate information needed to progress future design decisions with confidence.
